TL;DR: A Jenn-Air range keypad not working usually comes down to one of two codes on our site. F2-E0 means a short circuit has been detected in the touch keypad or its membrane switch, often from moisture or a worn overlay. F2-E1 means the ribbon cable between the keypad and the electronic oven control board is loose, damaged or making intermittent contact. Turn the breaker off for two minutes, dry and wipe the panel, and call a technician if the code returns.
What is a Jenn-Air range keypad doing when it stops working?

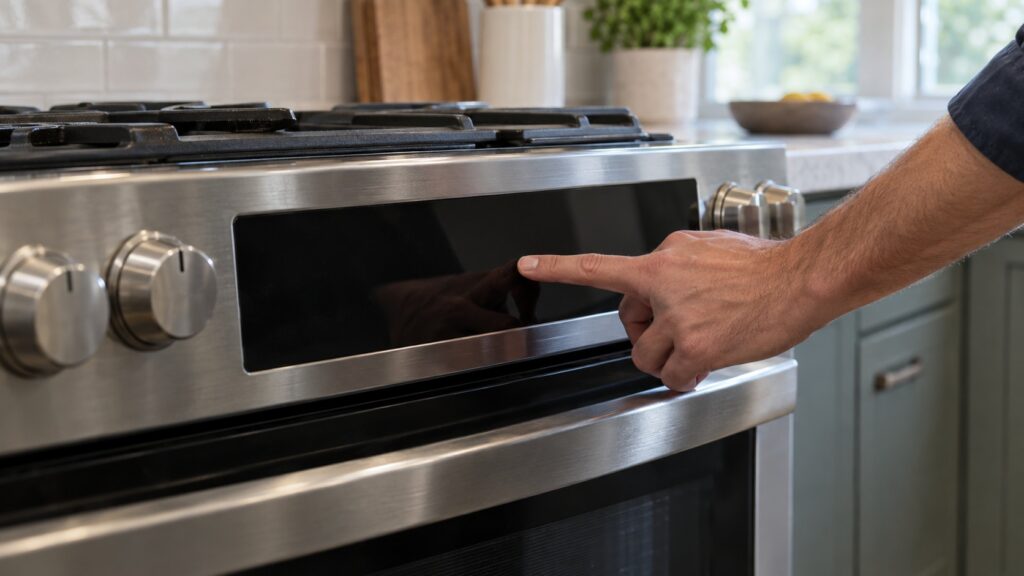

The touch panel on a Jenn-Air range is a flat membrane with printed contacts under a glass or film surface. Press a symbol and two thin layers touch, completing a circuit that the electronic oven control board reads. A flat flexible ribbon cable carries every one of those signals from the panel to the board. When either part fails, the range may register phantom button presses, ignore your touch or lock into a code and stop cooking.
Our site documents the two commonest codes separately: F2-E0, the shorted keypad, and F2-E1, the keypad cable problem. This guide starts from the symptom, because many people do not see a code at all; they just find that the controls are dead, jumpy or beeping.
How do F2-E0 and F2-E1 differ?
They look alike on the display and feel alike at the stove, but they point at different parts. F2-E0 says the membrane itself is shorted, so the electrical traces inside the touch panel are touching where they should not. Moisture is the most frequent trigger: steam, a splash or cleaner sprayed onto the panel can bridge those traces. A membrane that has aged and cracked can do the same without any water.
F2-E1 says the connection is the trouble. The ribbon cable may have partly unseated from its connector after years of door vibration and oven heat cycles, or it may be creased or corroded. A reset can bring it back temporarily because the contact happens to reseat, which is why the fault feels intermittent and then returns. Telling the two apart matters for the repair: one is a keypad replacement, the other usually a cable or connector job.
What can you safely try first?
Stay on the outside of the range. Three steps are safe for most owners:
- Power cycle. Turn off the range’s breaker for about two minutes, then switch it back on and test the controls. If moisture caused a short, the keypad may dry and recover.
- Clean the panel properly. Wipe the touch surface with a slightly damp cloth and dry it thoroughly. Never spray cleaner directly on the controls, since the liquid can run behind the membrane. Cooking spray and grease residue can also interfere with touch.
- Look for damage. Bubbling, peeling or discoloration on the overlay suggests the membrane has worn out and needs replacement.

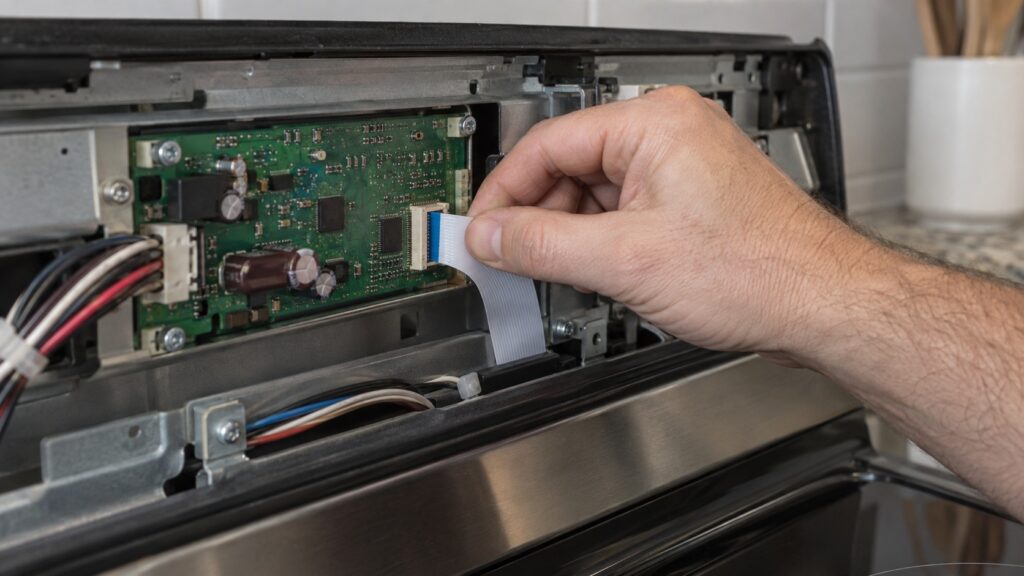

Reseating the ribbon cable means removing the back panel and working near live wiring. We only suggest that to someone who is comfortable cutting power at the breaker and handling electronics, and even then we would rather you stop at the three steps above and hand the rest to a technician.
Why does the same code mean different things on a wall oven?
Error codes on Jenn-Air products are not standardized across appliance types. On our site, F2-E1 on a wall oven means an upper oven overtemp, not a loose keypad cable, and F2-E0 on an oven is listed as a keypad short circuit. Match the code to the appliance you own before drawing a conclusion. If your appliance is a built-in wall oven, the oven pages are the right reference, and the guide on oven door lock codes covers another group of oven codes.
The ranges on our site that list these codes include the JES1750ML RISE electric downdraft slide-in, the JIS1450DS Euro-Style induction slide-in and the 48-inch Pro-Style RISE and NOIR models such as the JDRP748HL, JDRP648HL and JGRP748HL.
When should you call a technician, and is the range worth saving?
Call when the code returns after the power cycle, when the membrane shows physical deterioration, when the connector looks corroded, or when reseating does nothing. At that point the fix is a part, and a technician with a meter can confirm which one in the first part of the visit. These control systems are modular, so a single keypad or cable can usually be replaced without scrapping the range.
That matters for the repair-or-replace decision. A keypad fault is usually a modest repair on an otherwise sound range; compare it with the cost and disruption of replacing a premium range. Our range repair or replace guide and the note on the F8-E0 board communication code show how the decision shifts when the control board is involved. For another control-related range code, see the F6-E0 return line error. Our Jenn-Air range repair page lists what a visit includes, and you can book a visit directly.
